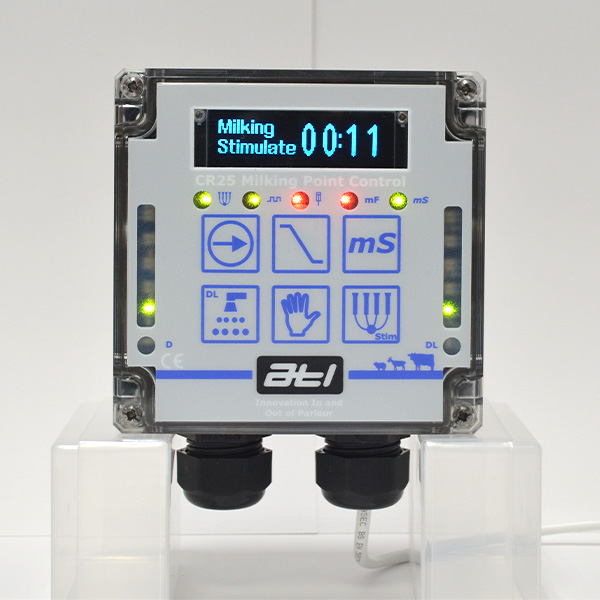

CR25 Cluster Remover

The CR25 cluster remover is one of the most useful additions to a milking parlour. They allow the operator to reduce milking times and improve teat health by automating the removal of the milking cluster from the animals.

Control Features
Simple numeric display of milking time (minutes:seconds) and conductivity (mS – millisiemens).
6 keys – automatic milking, manual milking, wash, conductivity on/off, transfer milk and hold milk.
Simple, bright OLED display
7 LED windows for auto milking, pulsation, ACR, milk flow, conductivity milking, data and dump line.
2 automatic milking modes – 1 time-based cluster removal and 1 sensor-based cluster removal.
3 manual milking modes (ACR disabled, conductivity pull off disabled, ACR and conductivity disabled).
Time-based cluster removal does not require a sensor.
Accurate milk flow measurement for ACR timing.
Full pulsation control – 30 to 180 pulses per minute (ppm) and 35% to 75% ratios.
Pulsation stop – pulsator only on when milking or washing.
Stimulation pulsation.
Washing pulsation – ability to run pulsation frequency at lower rate during washing to reduce liner wear.
User programmable wash time.
Wash time elapsed and remaining displayed (minutes:seconds).
User selectable conductivity warning and pull off levels.
User selectable ACR pull off resistance and time.
Lift to start ACR cylinder input.
Automatic idle after user selectable period of inactivity.
Milk sweep / purge.
Small form factor, allowing for easy installation into existing parlours.
Suitable for all herd sizes (small or large).
Can be retrofitted into abreast, herringbone or rotary parlours.
High conductivity automatically switches on hold milk so operator can dump milk if required.
M2 communications bus – enables all CR25 controls to be put into milk or wash from 1 control.
Includes outputs to control jar valves.
Sensor Features
Free-flowing sensor incorporating shut-off valve.
Smooth passage and evacuation of high milk flows.
The sensor shape reduces vacuum fluctuations.
Designed to prevent accidental closure and allow rapid response.
Swirl effect on inside surfaces of sensor induces effective washing.
The vacuum nipple can be positioned in any direction.
Milk inlet and outlet nipples – 21mm x 16mm.
